The LUXDrive family offering has been energizing LEDs for over fifteen years and continues to be the driver of choice for low voltage LED design requirements.  Offering Buck, Boost and Linear architectures up to forty-eight volts, the portfolio covers the vast majority of low voltage design requirements with a standard offering that can be customized should the application mandate.

Drivers

ProductTopologyIn / OutputInput VoltageOutput CurrentDimming Detail
QuadPuck 4016BuckDC / DC12 to 24 VDC1000 to 2100 mAPWMLink
QuadBlock F017BuckDC / DC12 to 24 VDC1000 to 2100 mAPWMLink
PowerPuck 2008BBuckDC / DC5 to 32 VDC350 to 1000 mANoneLink
MiniPuck F004BuckDC / DC6.5 to 30 VDC 350 to 700 mAPWMLink
MicroPuck 2009BuckDC / DC0.8 to 3 VDC350 to 600 mANoneLink

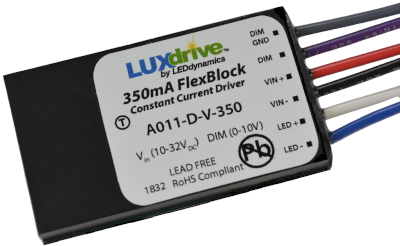

FlexBlock A011Buck-Boost, BoostDC / DC10 to 32 VDC350 to 700 mA0 - 10 VLink
DynaOhm 4006LinearDC / DC(2.6V + Vf) to 52 VDC20 to 30 mANoneLink
BuckToot 7027BuckDC / DC5 to 28 VDC350 mANoneLink
BuckPuck 302xDBuckDC / DC5 to 32 VDC350 to 1000 mA0 - 10 VLink
BuckPuck 302xABuckAC / DC7 to 24 VRMS350 to 1000 mA0 - 10 VLink
BuckBullet 7006BuckAC / DC8 to 24 VRMS350 to 800 mANoneLink
BuckBlock A009BuckDC / DC10 to 32 VDC1000 to 2100 mA0 - 10 VLink
BoostPuck 4015BoostDC / DC5 to 28 VDC350 mA0 - 10 VLink

* All specifications subject to change without prior notification.
