Features

  • Made in America design and quality
  • Customization of specifications available
  • DC input power up to 32V
  • 350mA, 700mA, or 1000mA constant current output
  • Output short circuit and open circuit protection
  • Small 1.5” x 0.50” mechanical envelope
  • Optional mounting bracket

Download

Applications

Literature

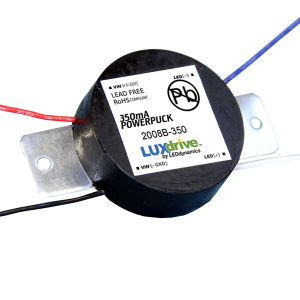

PowerPuck 2008B – 2008B_PowerPuck_v4-0

  • Solar Lighting
  • Architectural Lighting
  • Point of Purchase Lighting
  • Marine Lighting
  • Signal & Marker Lighting
  • Track Lighting
  • Flash & Strobe Lighting
  • Cabinet & Display Case
  • Sign & Channel Letters

Specifications

Product2008B-3502008B-7002008B-1000
GeneralTopology:Buck
Input / OutputDC / DC
InputVoltage Range:5 to 32 VDC
Efficiency:95%
OutputDrive Current:350 mA700 mA1000 mA
Current Accuracy:± 10%
Trim Range:None
ControlDimmable:No
ProtectionShort Circuit:15 Seconds
EnvironmentOperating Temp:-40 to 85o C
Storage Temp:-40 to 125o C
Operating Case TempMax:-40 to 85o C
MechanicalConnections:4 Wire Lead
DimensionsDxH:1.50 x 0.50 in
Weight:0.96 oz
RegulatoryCompliance:RoHS
Warranty:2 Years

* All specifications are subject to change without prior notification.

Ordering Number

ProductInput VoltageDrive CurrentControlConnection
2008B-3505 to 30 VDC350 mANon Dimming4 Wire Lead
2008B-700700 mA
2008B-10001000 mA
