Cree Indus Star LED Light Modules

Product Description

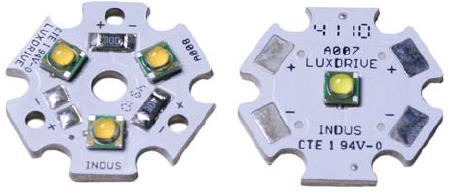

The Indus Star combines high brightness with ease of integration into fixtures and OEM applications.  The LUXdrive™ Indus Star features a wide range of Cree XLamp emitters in both 1-up and 3-up designs on a 20mm star board.  Inherent electrical isolation means thermal interface materials are not required to be electrically insulative.  LEDdynamics strives to use the highest flux bins that are most readily available, please contact us if you require a specific bin.

Features

  • Made in America design and quality
  • Customization of specifications available
  • Available in range of colors and white
  • Beam sculpting optics available

Applications

  • General Illumination
  • Display Case Lighting
  • Sign Lighting
  • Flashlights

White 1-Up Product Selection Guide

Star DesignCree LEDPart NumberCCTCRIVoltage
(Vf)
Lumens @350mA
1-Up
Cree XLamp XP Package (3.45mm) on 20mm Star
XP-L2A007-CL20830V23000K802.7914001
A007-CL20840V34000K804201
A007-CL20750V45000K804401
A007-CL20765V56500K804601
XP-G3A007-CG30827R42700K802.70119
A007-CG30830R53000K80139
A007-CG30840S24000K80148
A007-CG30750S35000K70156
A007-CG30765S46500K70164
XP-G2 HEA007-CG2H830R53000K802.70139
A007-CG2H840S34000K80156
A007-CG2H750S35000K70156
A007-CG2H765S46500K70164
XP-E2A007-E2827-Q22700K802.8487
A007-E2830-Q33000K8093
A007-E2740-Q44000K70114
A007-E2750-Q45000K70156
  1. Values specified @350mA, Tj 85°C – for more specs, visit emitter data sheet: XP-L2, XP-G3, XP-G2 HE, XP-E2
  2. Cree XP-L2 is tested @ 1050mA, Tj 85°C
  3. All specifications are subject to change without prior notification.

White 3-Up Product Selection Guide

Star DesignCree LEDPart NumberCCTCRIVoltage
(Vf)
Lumens @350mA
3-Up
Cree XLamp XP Package (3.45mm) on 20mm Star
XP-L2A008-CL20830V23000K808.37112001
A008-CL20840V34000K8012601
A008-CL20750V45000K8013201
A008-CL20765V56500K8013801
XP-G3A008-CG30827R42700K808.10357
A008-CG30830R53000K80414
A008-CG30840S24000K80444
A008-CG30750S35000K70468
A008-CG30765S46500K70492
XP-G2 HEA008-CG2H830R53000K808.10417
A008-CG2H840S34000K80468
A008-CG2H750S35000K70468
A008-CG2H765S46500K70492
XP-E2A008-E2827-Q22700K808.52261
A008-E2830-Q33000K80279
A008-E2740-Q44000K70342
A008-E2750-Q45000K70468
  1. Values specified @350mA, Tj 85°C – for more specs, visit emitter data sheet: XP-L2, XP-G3, XP-G2 HE, XP-E2
  2. Cree XP-L2 is tested @ 1050mA, Tj 85°C
  3. All specifications are subject to change without prior notification.

 Color Product Selection Guide

Star DesignCree LEDPart NumberColorWavelength (NM)Voltage
(Vf)
Lumens @350mA
1-UpXP-G3A007-CG30PHR32Photo Red6451.995002
A007-CG30ROYF4Royal Blue4512.797302
XP-E2A007-CE20AMBP4Amber585-5952.1880.6
A007-CE2BLUM3Blue465-4852.8545.7
A007-CE20FAR27Far Red720-7401.853752
A007-CE20GRNR3Green520-5352.70122
A007-CE20PCAQ5PC Amber~2.94107
A007-CE2PHR30Photo Red650-6702.054502
A007-CE20REDP3Red620-6302.1873.9
A007-CE20RDOQ5Red-Orange610-6202.18107
A007-CE20ROY37Royal Blue450-4652.964502
3-UpXP-G3A008-CG30PHR32Photo Red6455.9715002
A008-CG30ROYF4Royal Blue4518.3721902
XP-E2A008-CE20AMBP4Amber585-5956.54242
A008-CE2BLUM3Blue465-4858.55137
A008-CE20FAR27Far Red720-7405.5511252
A008-CE20GRNR3Green520-5358.1366
A008-CE20PCAQ5PC Amber~8.82321
A008-CE2PHR30Photo Red650-6706.1513502
A008-CE20REDP3Red620-6306.54222
A008-CE20RDOQ5Red-Orange610-6206.54321
A008-CE20ROY37Royal Blue450-4658.7913502
A008-CE20RGB00Red/Green/Bluesee emitter valuessee below3see emitter values
  1. Values specified @350mA, Tj 25°C – for more specs, visit emitter data sheet: XP-L2, XP-G3, XP-G2 HE, XP-E2
  2. Photo Red, Far Red, and Royal Blue are binned by radiometric power.  All other colors are binned by luminous flux.
  3. RGB LED boards are built without the 0 ohm jumpers connecting the LEDs in series, each LED is individually driven so that you can RGB color mix.
  4. All specifications are subject to change without prior notification.

Specific Maximum Ratings

LED Series
DC Current (mA)
Typ. Viewing Angle
Thermal Resistance (°C/W)*
1-up3-up
Cree XP-L23000125°1.6°1.2°
Cree XP-G3 - Whites2000125°
Cree XP-G3 - Photo Red1500125°3.5°
Cree XP-G3 - Royal Blue2000130°1.83°
Cree XP-G2 HE2000125°
Cree XP-E2 - Whites1500110°6.8°2.93°
Cree XP-E2 - Amber1500130°8.5°3.5°
Cree XP-E2 - Blue, Royal Blue1200135°6.7°2.90°
Cree XP-E2 - Far Red1500140°7.5°3.17°
Cree XP-E2 - Green1500135°10°
Cree XP-E2 - PC Amber1500105°6.5°2.83°
Cree XP-E2 - Red, Photo Red, Red-Orange1500130°7.5°3.17°
  1. *LED junction to bottom of starboard (MCPCB), measured in °C/W

Accessory Ordering Detail

TypeCategoryPart
Number
DescriptionLED NumberBeam AngleCount
XP-G2OpticsCO-10003Plain Tight112o~
CO-10138Frosted Narrow114o~
CO-10003-15Ripple Medium129o~
CO-10139Frosted Medium121o~
CO-10003-25Ripple Wide141o~
CO-10140Frosted Wide131o~
CO-10003-L25Elliptical144 x 12o~
CO-10734Universal Holder1~~
XP-E2OpticsCO-10193Plain Tight38o~
CO-10194Frosted Narrow310o~
CO-10208Ripple Medium328o~
CO-10195Frosted Medium343o~
CO-10209Ripple Wide331o~
CO-10196Frosted Wide347 x 8o~
CO-10197Elliptical3~~
CO-10736Universal Holder3~~
XP-E2 & XP-G2OpticsCO-10507Spot Base Module316o~
CO-10511Frosted Spot Base Module322o~
CO-10508Medium Base Module326o~
CO-10509Wide Frosted Base Module337o~
CO-10510Oval Base Module343 x 16o~
GeneralThermalA001-010HThermal Adhesive Tape~10
A001-150H~150

* All specifications are subject to change without prior notification.
