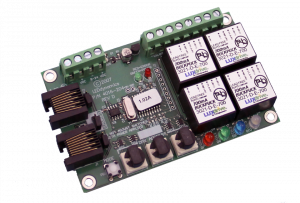

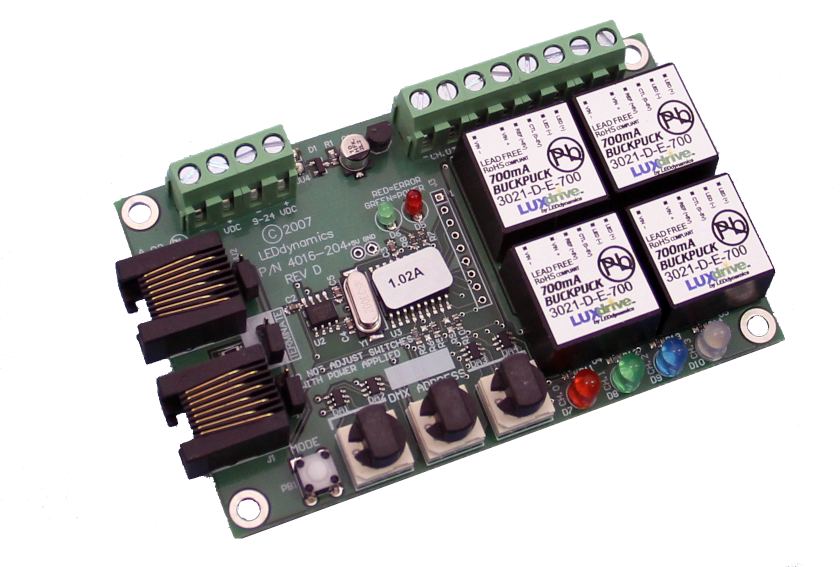

QuadPuck 4016 – Four Channel DMX Driver Interface
QuadPuck 4016 – Four Channel DMX Driver Interface
4-Channel DMX Driver Interface (12–24VDC) for high current LED arrays (1A–2.1A). Features precise PWM dimming control via DMX protocol.
Overview
The QuadPuck 4016 is a four-channel DMX driver interface that utilizes a DC:DC buck topology to provide regulated power to LED circuits. It is designed to accept an input voltage ranging from 12 to 24 VDC and delivers a flexible constant current output between 1000 and 2100 mA. Additionally, this module supports PWM dimming, allowing for precise control over lighting intensity.
Features
- Made in America design and quality
- On-Board selected DMX addressing
- One to four control channel support
- USITT DMX/512/1990 Compatible
- Simple RJ45 connections for DMX & power
- Power-On-Self-Test and DMX transmission error indicators
- Optional terminal blocks for power & outputs
- Compact mechanical envelope (4.0” x 2.5” x 1.0”)
Applications
- Powering & controlling LED arrays
- Area lighting & control systems
- Architectural lighting systems
- Theatrical & production lighting systems
- RGBW fixtures & systems
- Computer control interface
- Accent lighting control
- Landscape lighting control
Datasheet
Ordering Detail
| Product | Input Voltage | Channels | Compatible Driver1 | Connection |
|---|---|---|---|---|
| QuadPuck 4016 | 8 to 32 VDC | 4 | BuckPuck 3021-D-E | RJ45 |
1 Compatible drivers are sold separately.
