Features

  • Made in America design and quality
  • DC input power up to 24V
  • xxmA constant current output
  • Customization of specifications available
  • Up to 1080 lumens per foot
  • Daisy-chain capable up to twelve feet
  • Dimming capable and field cut to four inches

Download

Applications

Literature

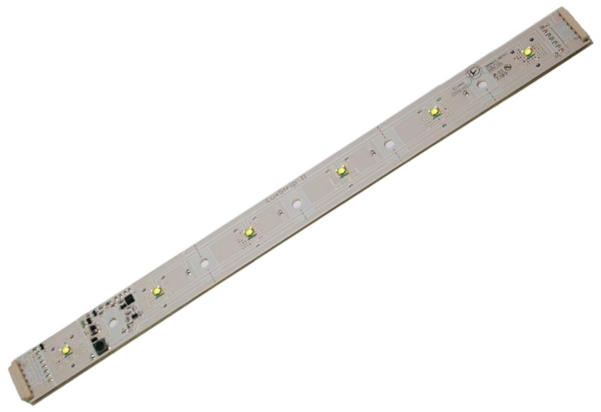

LuxStrip II A006 – A006_LuxStripII_V2.1

  • Automotive, RV & Marine Lighting
  • Cabinet & Display Case Lighting
  • Tight Space & Cove Lighting
  • Wall Wash Lighting
  • Desk & Reading Lamps
  • Sign & Channel Letters

Specifications

ProductA006-EWxxx-xxA006-GWxxx-xx
GeneralShape:Strip
Drive Current:Standard Output - 350 mAHigh Output - 700 mAStandard Output - 350 mAHigh Output - 700 mA
Lumens:440 to 630810 to 1080630 to 7001080 to 1270
Beam Angle:120o
CCT:3000K to 5000K
CRI:70+ & 80+
Field Cut:2 inch increments to a minimum of 4 inches
Daisy Chain Limit:12 feet8 feet12 feet8 feet
Forward Voltage:?? min VDC24 nom VDC?? max VDC
Power Consumption:7 watts per foot15 watts per foot7 watts per foot15 watts per foot
ControlDimming:Yes
Type:0 - 10 V
ProtectionShort Circuit:Yes
EnvironmentOperating Temp:-40 to 100o C
Storage Temp:-40 to 120o C
MechanicalDimensions :12.0 x 0.95 x 0.23 in
Weight:0.99 oz
RegulatoryCompliance:RoHS
Warranty:1 Year

* All specifications are subject to change without prior notification.

Ordering Detail

TypePart NumberColorLumen OutputCRIDaisy Chain Limit
Cree XP-G2A006-GW730-353000K46280+12 Boards
A006-GW740-354000K59570+
A006-GW750-355000K630
A006-GW730-703000K80080+8 Boards
A006-GW740-704000K99570+
A006-GW750-705000K1080
Cree XP-E2A006-EW730-353000K46280+12 Boards
A006-EW740-354000K59570+
A006-EW750-355000K630
A006-EW730-703000K80080+8 Boards
A006-EW750-705000K1080
A006-EW740-704000K99570+

Accessory Ordering Detail

CategoryPart
Number
DescriptionLED NumberHalf Width
Viewing Angle
Beam AngleDim Line
OpticsL2-OPXP-1-SPOTSpot Base Module15o10o~
L2-OPXP-1-SDIFFrosted Spot Base Module17o14o~
L2-OPXP-1-MEDMedium Base Module18o16o~
L2-OPXP-1-WIDEWide Frosted Base Module120o40o~
L2-OPXP-1-OVALOval Base Module18 x 25o16 x 50o~
Power ConnectorA006-HEFour Wire Connector~Yes
A006-HNTwo Wire Connector~No
A006-PEBarrel Connector~Yes
A006-PN~No
ThermalA006-TATThermal Adhesive Tape~
