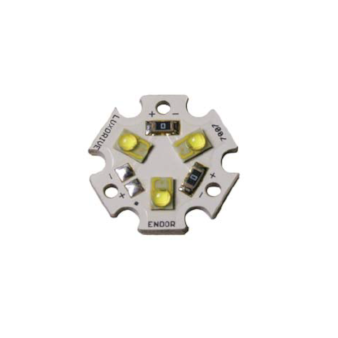

Endor Star 7007 – Light Module
Endor Star 7007: Luxeon Rebel LED light module on a 20mm star board (3 LEDs). It delivers 65–540 lumens in white or colors for compact, high-output lighting solutions.
Overview
The Endor Star 7007 is an LED Light Module provided on a 20mm star-shaped board for efficient heat dissipation and mounting. It utilizes three Luxeon Rebel LEDs, and can generate a light output ranging from 65 to 540 lumens. This module shares similar specifications and components as the Endor Star 7040.
Features
- Made in America design and quality
- Three LEDs delivering up to 540 lumens
- Customization of specifications available
- Electrically isolated heat sinking surface
- Beam sculpting optics available
Applications
- Incandescent replacement
- Solar & Landscape Lighting
- General Illumination
- Display Case Lighting
- Sign Lighting
- Flashlights
Datasheet
7040 7007 Endor Star Datasheet
Accessories
| Category | Part Number | Description | LED Number | Beam Angle | Count |
|---|---|---|---|---|---|
| Optics | CO-10507 | Spot Base Module | 3 | 16o | ~ |
| CO-10511 | Frosted Spot Base Module | 3 | 22o | ~ | |
| CO-10508 | Medium Base Module | 3 | 26o | ~ | |
| CO-10509 | Wide Frosted Base Module | 3 | 37o | ~ | |
| CO-10510 | Oval Base Module | 3 | 43 x 16o | ~ | |
| Thermal | A001-010H | Thermal Adhesive Tape | ~ | 10 | |
| A001-150H | ~ | 150 | |||
